IllustrationOPUS · Sleeps 5
EXPEDITION MAX Hardside Family Off-Road Hybrid Caravan with Bunks
Built for families who travel further.
A hardside off-road hybrid built around growing families. Internal ensuite, queen up front, bunk layouts down back, and a 1200Ah lithium and 800W solar system that keeps you out in places without cell service.
Recognized · Earned · Owner-tested

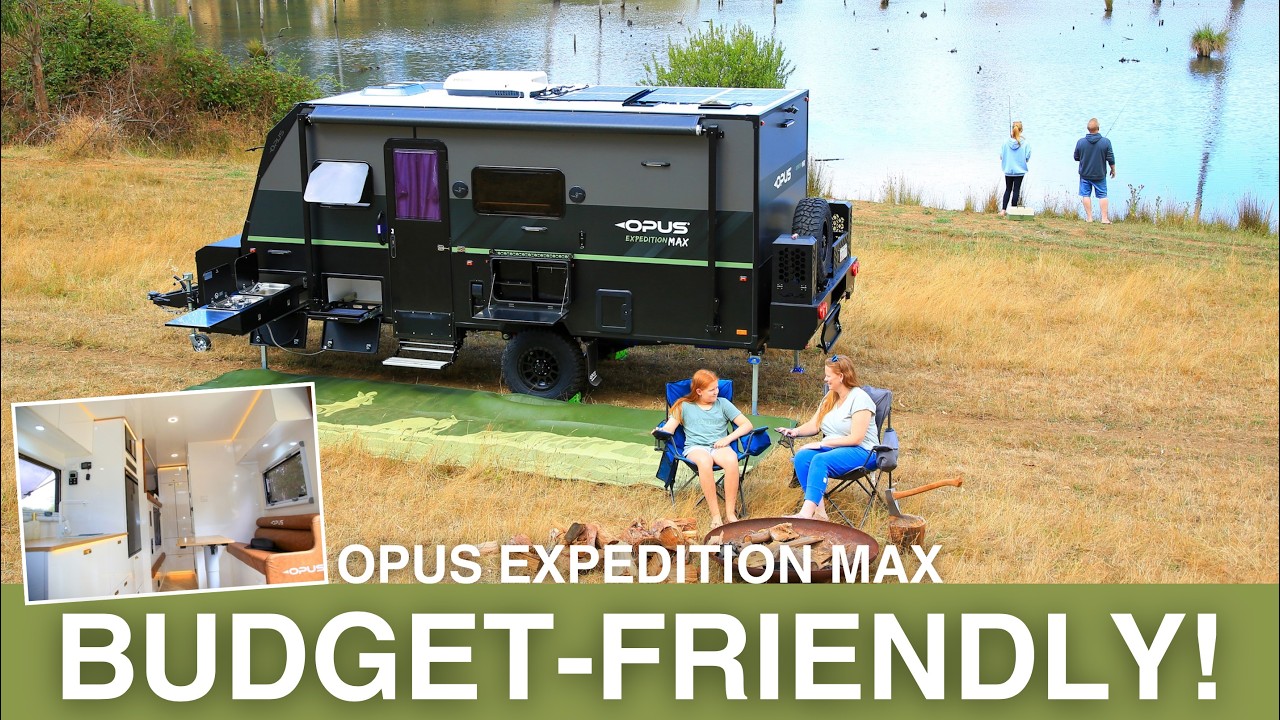

On test
What the reviewers say.
Don't just take our word for it. See it put through its paces by owners and reviewers who take it out for real.
Inside the EXPEDITION MAX
Built around the way you actually camp.
IllustrationPremium where you sleep
An innerspring queen with a leatherette headboard and panoramic windows, the kind of fit-out the brochure photos never quite land. Soft to fall into after a long day towing.
IllustrationBunks, L lounge, kitchen
A 2- or 3-bunk layout down back, an L lounge to gather around and a full galley with a sink, microwave and 4.6 cu ft refrigerator. Parents and kids get their own ends of the cabin.
IllustrationOff-grid is the standard
Plug the kettle in. Run the microwave, the AC, the laptop and the TV. 1200Ah of lithium and 800W of roof solar, with a 3,000W inverter wired to every outlet in the rig.
IllustrationBuilt for the washboard
A hot-dipped galvanized gooseneck chassis, OPUS vertical-mount Pedders shock suspension, Ridge Runner reinforcement and a Cruisemaster DO35 articulating hitch. Engineered for the roads that shake travel trailers apart.
The numbers
EXPEDITION MAX by the figures.
Specifications are indicative and may vary by configuration. Confirm final numbers with your OPUS dealer before purchase.

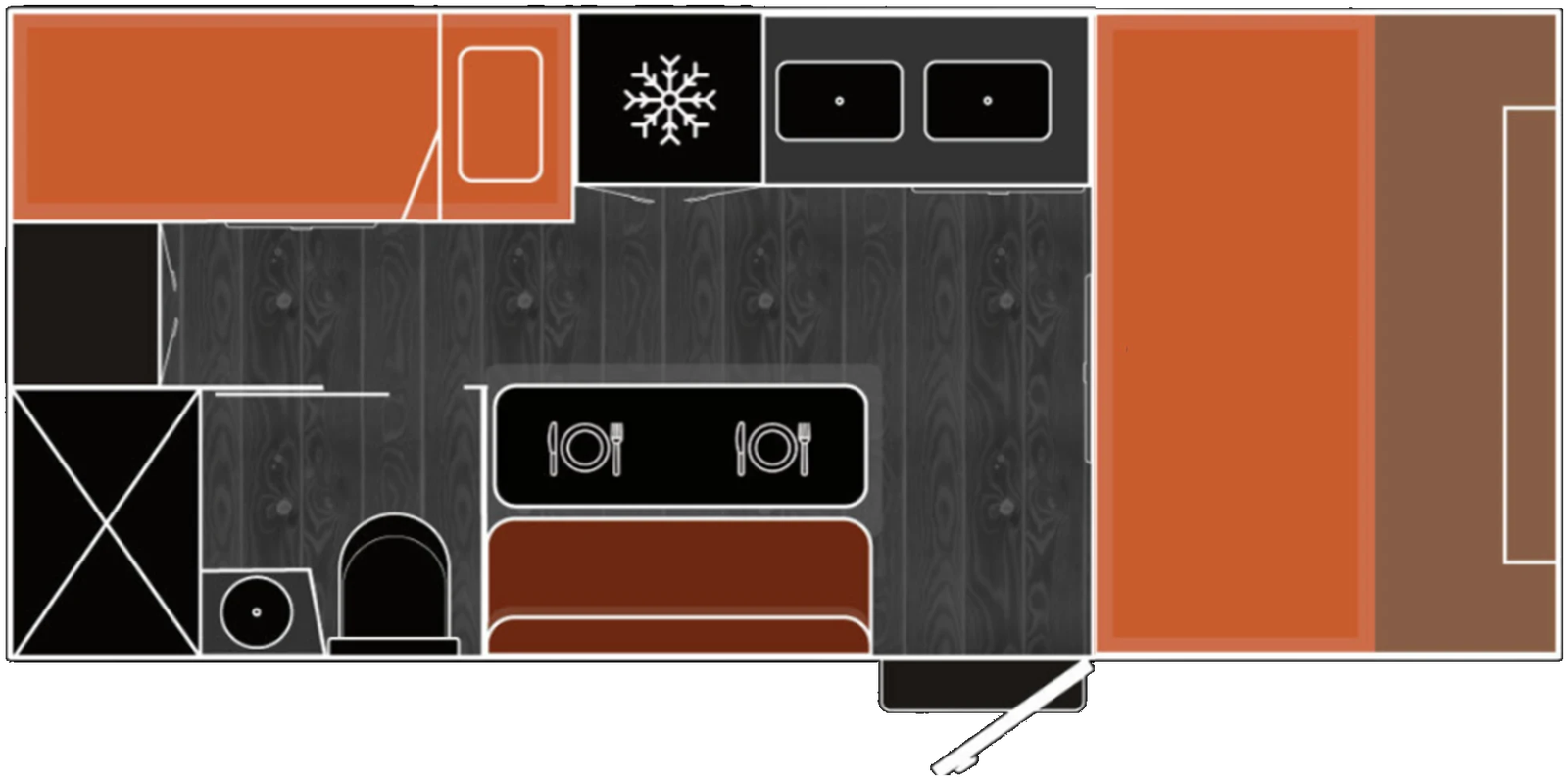

Floor plan
How the MAX lives.
Plan view of the standard layout. Bedding, galley, ensuite and lounge in their daily configuration, all the dimensions you need to picture the space before you walk through one.
Floor plan shown is the standard layout. Bunk and bedding configurations may vary by configuration, confirm at order with your OPUS dealer.
What's in the box
Standard kit + the extras worth ticking.
Standard inclusions
19 items- 1200Ah lithium battery system
- 800W roof-mounted solar (4 x 200W)
- 3,000W Victron inverter charger wired to all outlets
- DC-DC charger
- Dometic FreshJet rooftop AC
- Dometic 4.6 cu ft fridge / freezer
- Dometic slide-out external 2-burner kitchen
- Fogatti instant gas hot water
- Internal ensuite, separate toilet and shower
- Innerspring queen mattress
- 24-inch smart TV with antenna
- Fusion Bluetooth sound system
- Hot-dipped galvanized gooseneck chassis
- OPUS vertical-mount Pedders shock suspension
- Cruisemaster DO35 articulating hitch
- 63 gal fresh + 18 gal gray water tanks
- Roll-out awning
- 2 x 20 lb propane tank holders
- Rear toolbox with spare wheel carrier, jerrican holders and firewood box
Optional extras
3 items- Nemesis Pro Wheel Lock+ $329
- Saracen Hitch Lock for DO35 Off-Road+ $154
- Water & Waste Carriers 6 gal (each)+ $49
Add to order. Make it your own.
Real Adventure Awaits
Ready to make the EXPEDITION MAX yours?
Spec it your way, then your nearest OPUS dealer comes back with the final figure, title and tax included. Or come stand next to one first.
Out there
In its element.
Illustration
Illustration
Illustration
IllustrationRecognized · Awarded · Earned the hard way
Common questions
Everything you want to know.
Up to 5 across the queen up front and the 2- or 3-bunk layout down back. Most families spec the 2-bunk for two parents and two kids; the 3-bunk works when there is a third child or a friend along.
Yes. The US builds the hardside body only. It sets up faster because there is no roof to raise, and the insulated shell holds heat and cold better for four-season trips.
GVWR is 6,600 lbs with 551 lbs on the tongue, and it weighs 5,591 lbs dry. A half-ton pickup rated to 8,000 lbs and up handles it, and a three-quarter-ton does it without noticing. Check the tow rating, tongue capacity and payload on your specific vehicle before you order.
1200Ah of lithium and 800W of roof solar handle a fortnight or more for an active family running the refrigerator, lights, pump, TV and device charging. The 3,000W inverter runs the AC, microwave and 110V appliances directly. 63 gallons of fresh water gets four people through about a week of normal use.
A hot-dipped galvanized gooseneck chassis, independent coil-spring suspension with vertical-mount Pedders shocks, Ridge Runner corner reinforcement, mud-terrain tires and a Cruisemaster DO35 articulating hitch. Specced for the same roads the camper-trailer range handles, with caravan-grade comfort inside.
5 years on structure and suspension. Component manufacturers carry their own terms, and your OPUS dealer confirms all of it in writing before you sign.
IllustrationMost questions get answered out here. Drop us a note if yours isn't covered above.
